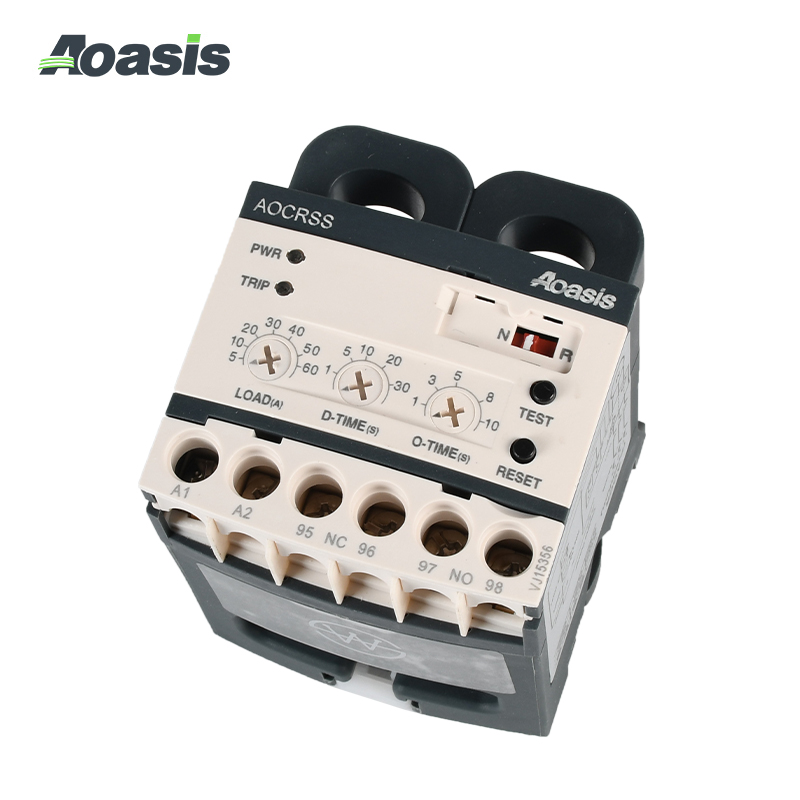

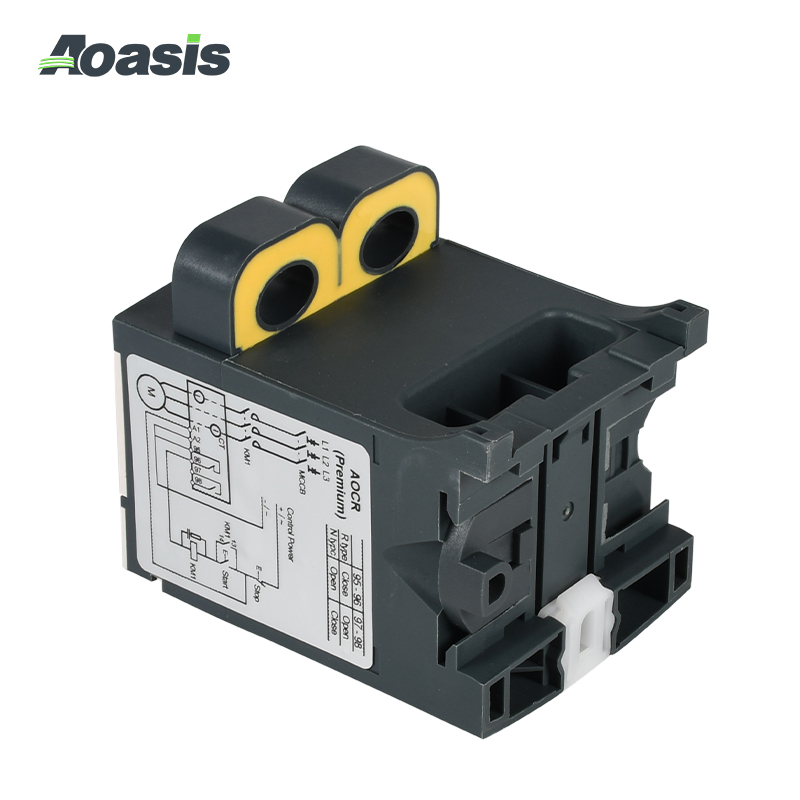

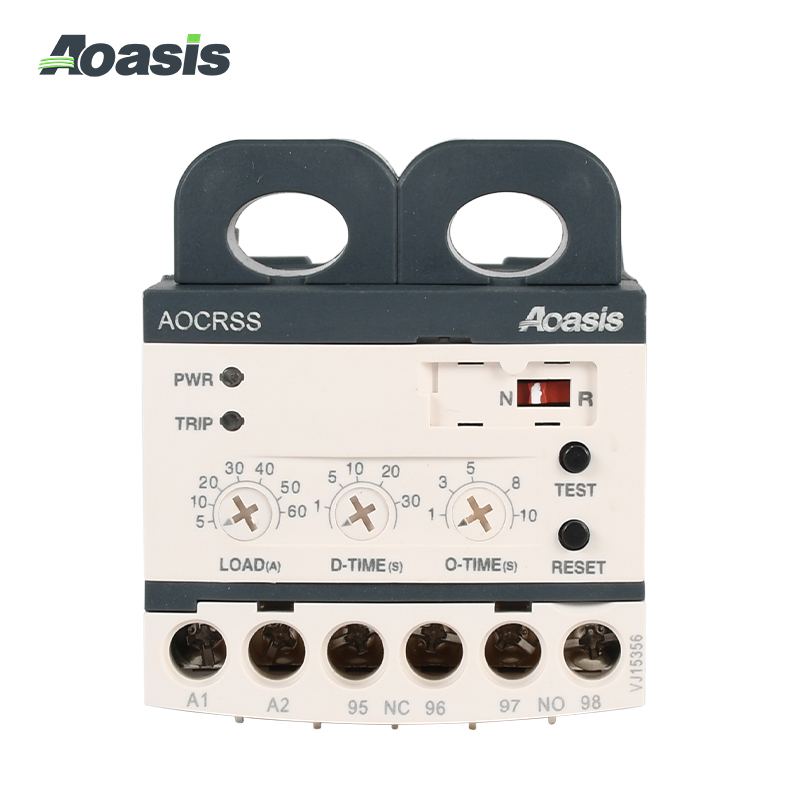

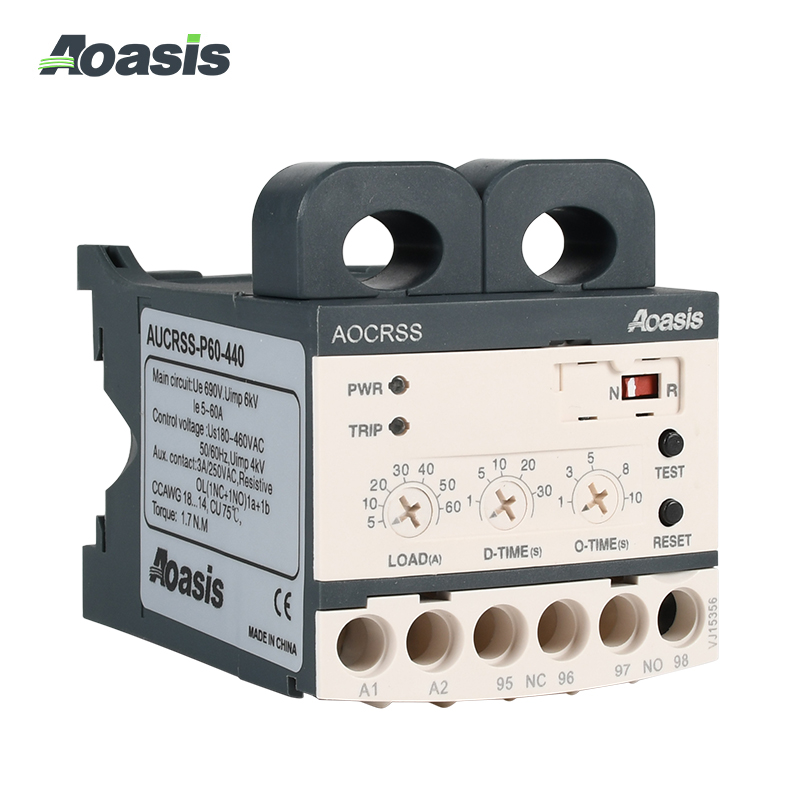

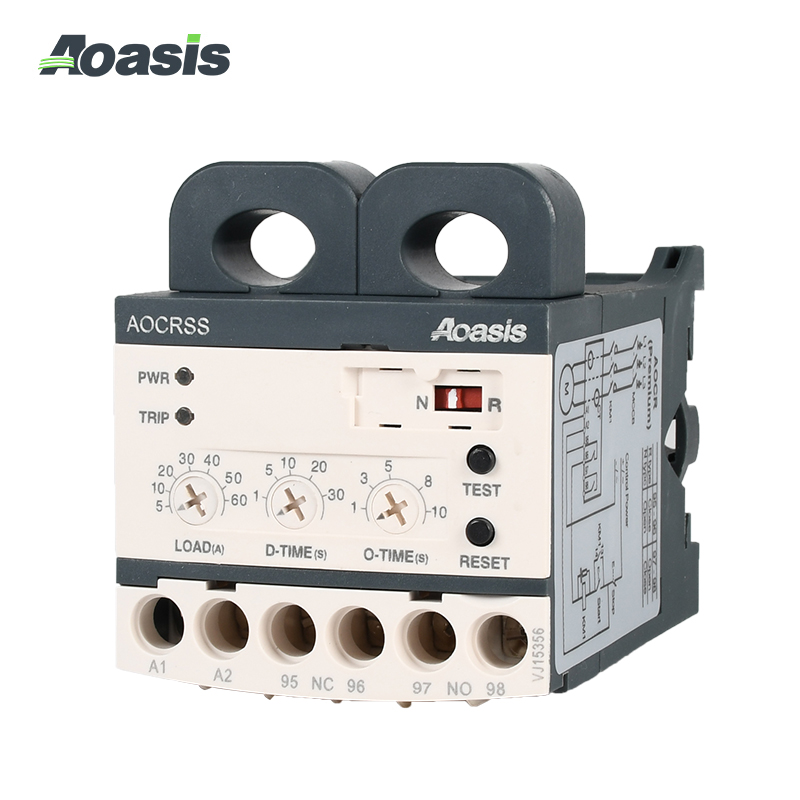

1、Overload / Phase Loss / Locked Rotor protection
2、Independently Adjustable Starting Trip Delay & Operating Time
3、IAC/ DC Power Supply Universal*Standard Mode AC 100~240V
4、PWR & Trip Indication LED
5、Manual / Electric Reset
6、MCU(Microprocessor Control Unit) Based
7、N-type and R-type Integration(DIP SW selection)
8、Standard Mode Only N Tpye
9、（No Volt Release/ Fail-safe Operation)→N Type
10、Low Energy Consumption
Used for
- Low Voltage Induced Electromotor (600V Level) Protective Relay
- Break-Down Watch Current Relay
Technical Parameters:
|
Current Setting |
Type |
Rang |
|
| 05 | 0.5～5~6A | ||
| 30 | 3～30A | ||
| 60 | 5 ~ 60A | ||
| 60～600 |
Use an exteral CT(secondary 5A)over 60Awith 05 type |
||
| Time |
Starting |
D-TIME |
0.2～30 sec |
|
Operation |
D-TIME |
0.2～10 sec |
|
|
Reset |
Manual /Electric Reset |
||
|
Indicator |
LED | ||
|
Accuracy |
Current |
±10% |
|
| Time |
±15% |
||
|
Control Voltage |
Voltage Range |
S(Premium) |
24V -240V AC/DC |
|
W(Standard) |
180~460V AC |
||
|
Frequency |
50/60Hz |
||
|
Output |
Contact |
2/1-SPDT(Premium:1a1b,Standard:1c) |
|
|
Condition |
N Type |
When powered,95/96 Open,95/98 Close |
|
|
R Type |
When powered,95/96 Open,95/98 Close |
||
|
Contacts |
5A/250VAC Resistive |
||
|
Dielectric Strength |
Between Case & Circuit |
Over 100MΩ with 500VDC Megger |
|
|
Between Case & Circuit |
2.0kV,50/60HZ,1 min |
||
|
Between Contacts |
1.0kV.50/60Hz,1min |
||
|
Between Circuit |
2.0kV.50/60Hz,1min |
||
|
Environment |
Temperature |
Storage |
-30-80℃ |
|
|
-20-60℃ |
||
|
Humidity |
30～85% RH. Not-condensate |
||
|
Mounting |
35mm DIN-Raii7 Panel |
||
Outline and Installation Dimensions:
