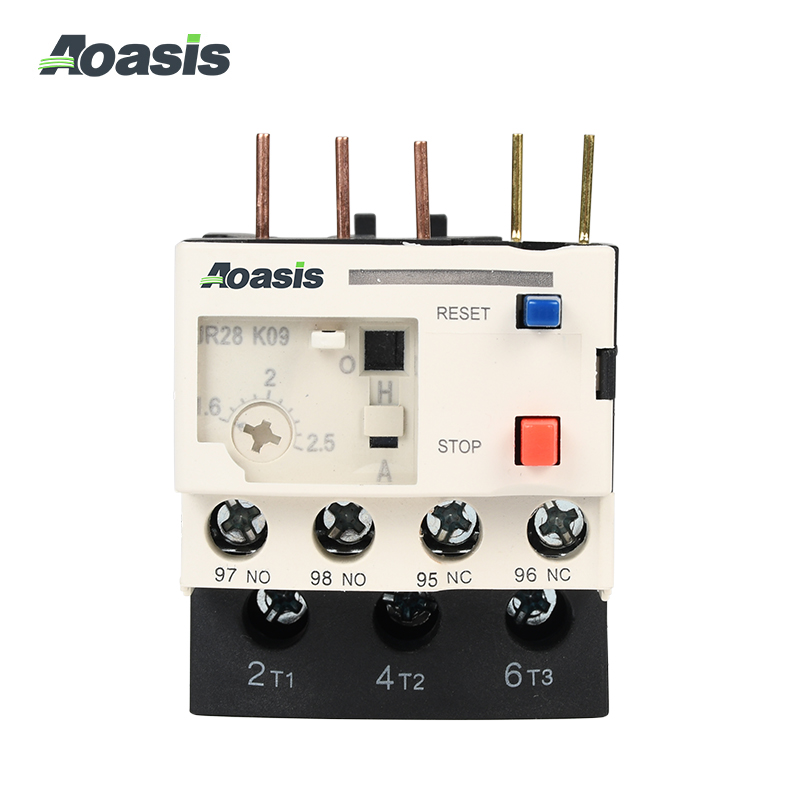

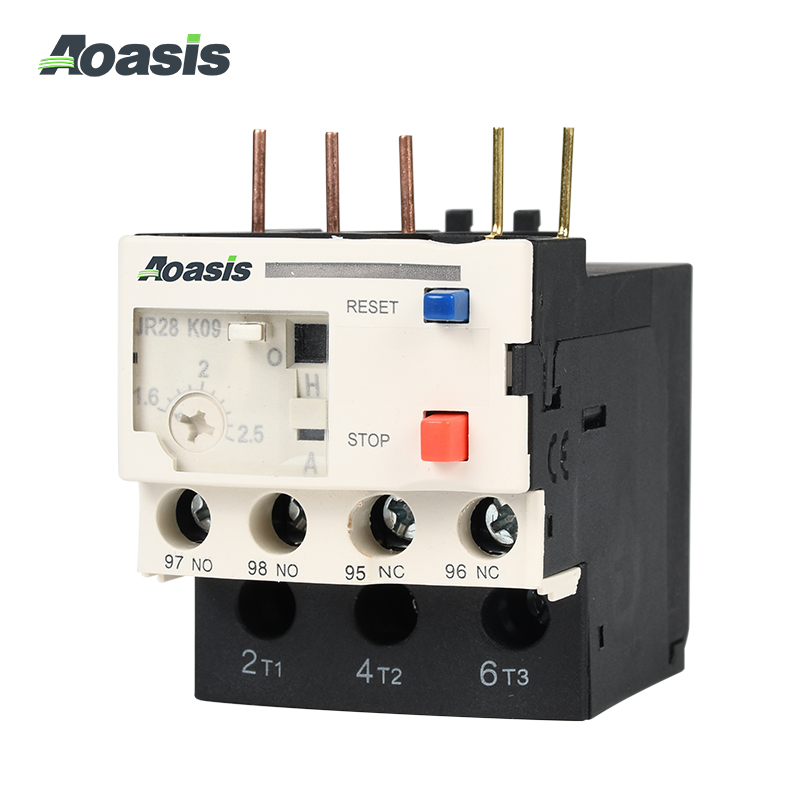

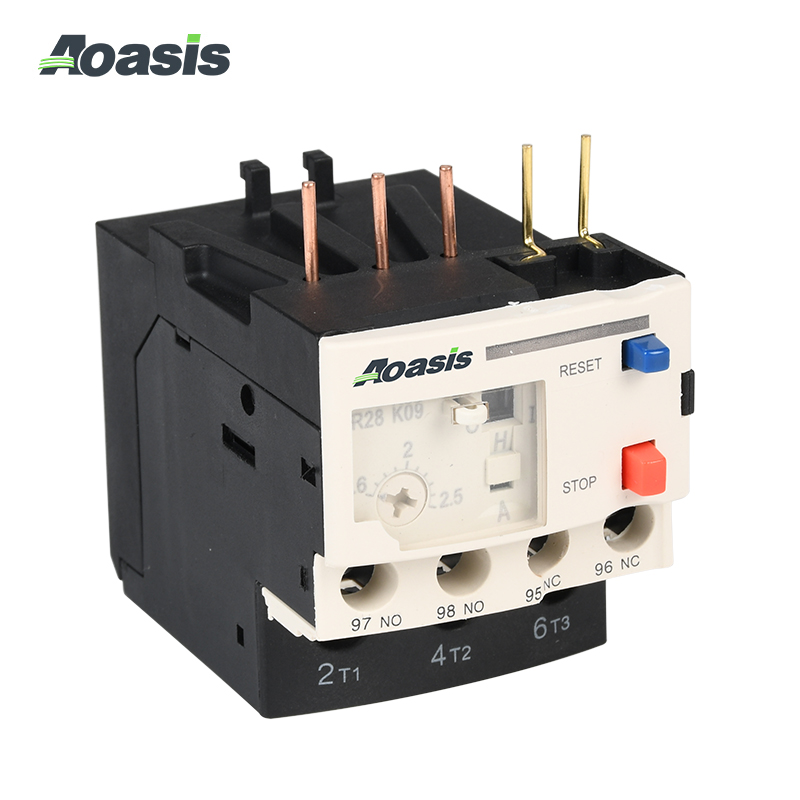

AOR2- series thermal overload relay is used in the power network of AC 50Hz or 60Hzvoltage up to 660V,current of 93A and below, it protectsthe circuit and electromotor from overload, phase loss, long starting duration, and long blocking duration, With the diferental mechanism, temperaturecompensation ,adjustable seting curent,and optional auto or manual resetting, t can be working individually or assembled with CJX2 AC contactor.
Technical Parameters:
Type
AOR2-D
AOR2-K12
Return Mode
Manual or Auto Return
Current Setting Range
TYPE
Setting Range(A)
TYPE
Setting Range(A)
Setting Range(A
AOR2-D06 AOR2-D07 AOR2-D08 AOR2-D10 AOR2-D12 AOR2-D14
1-1.6 1.6-2.5
2.5-4
4-6
5.5-8
7-10
AOR2-D16
AOR2-D21
AOR2-D22 AOR2-D32 AOR2-D35
9-13
12-18
16-24
23-32
30-38
0.1-0.16 0.16-0.25 0.25-0.4 0.4-0.63 0.63-1
1-1.6
1.6-2.5
2.5-4
4-6
5.5-8
7-10
9-13
ContactArrangement
1NO+1NC
Model of Matching Contactors
CJX2N-09、12、18、25、32、38
CJX2-K06、K09、K12
Dimensions(mm)：
