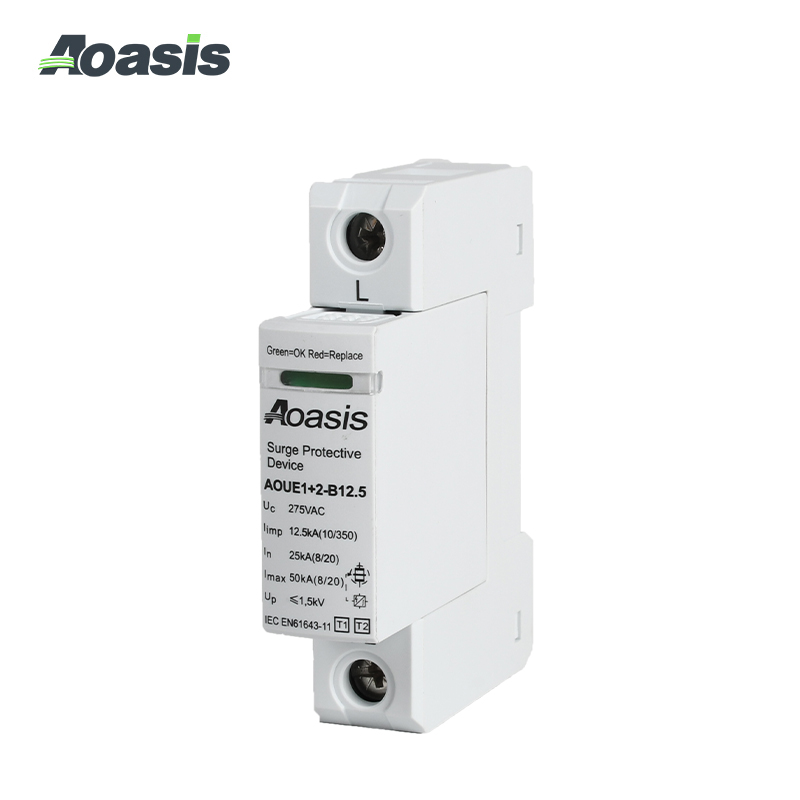

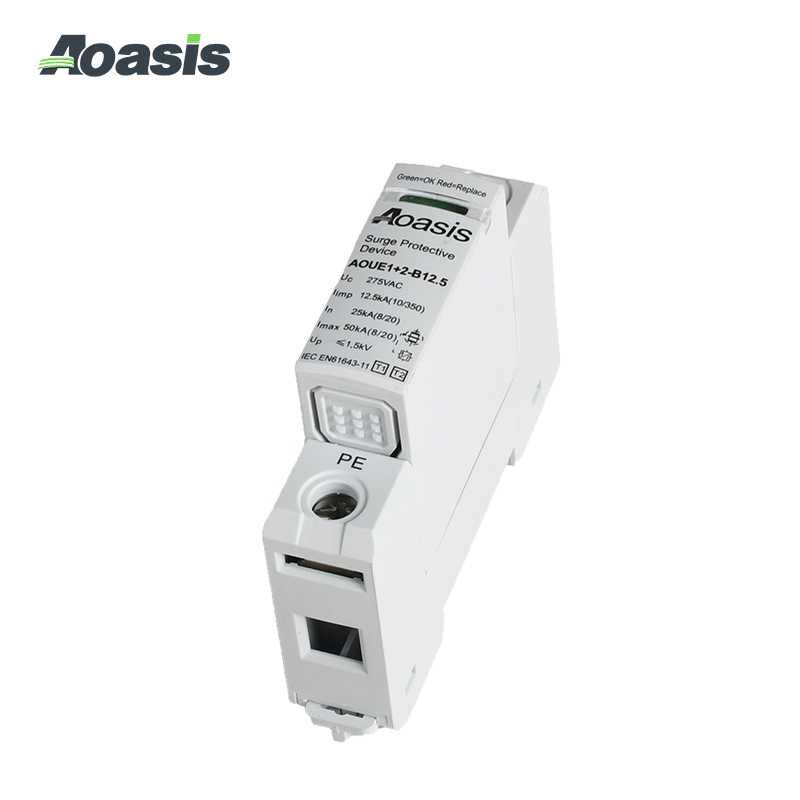

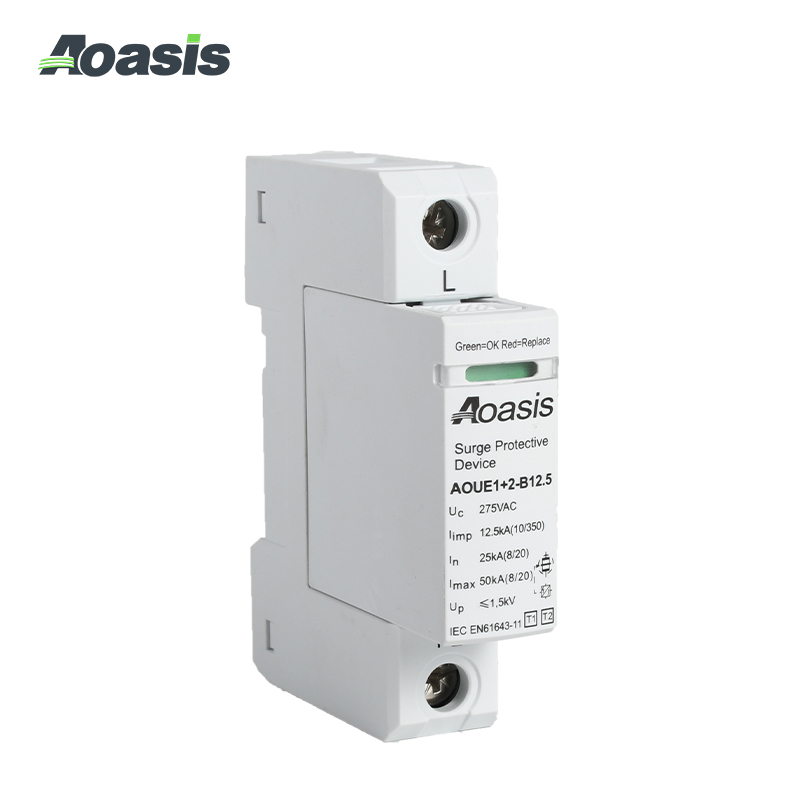

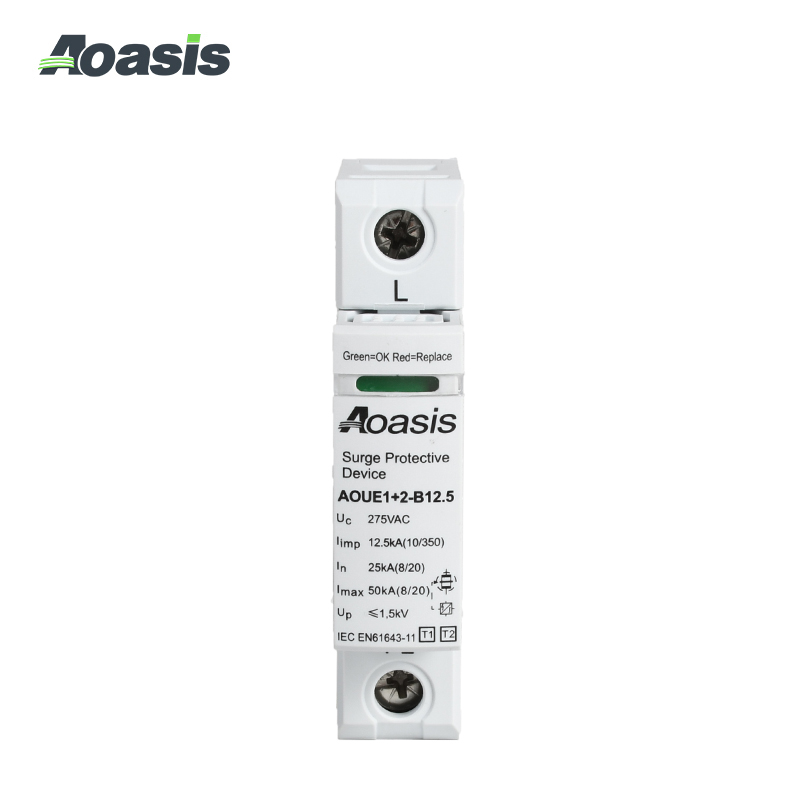

The AOUE1+2 line is a group of Class I+II Surge Protective Devices. They are intended as a protecti-on against indirect and low intensity direct hits of lightning strokes. In standard three phase TN-C grid, they provides protection to LPL III, IV requirements given in EN 62305 with total lightning current introduced into electrical installation of 37.5 kAand totallightning stroke current 75 or 100kA based on physical conguration and mutual position of grounding point of lightning rod, grounding point of the electrical installation and place of SPD installation.
Electrical parameters：
| Poles | 1+0、2+0、3+0、4+0、1+1、3+1 | 1+1、3+1 | |
| (L-N/PE/PEN) | (X+1 NPE) | ||
| Standards | EN 61643-11 | ||
| Category lEC/VDE | Type1+2(Classl+ll,B+C,T1+T2) | ||
| Technology | MOV (Varistor) | GDT(Spark-gap) | |
| Reference test voltage | 250VAC |
|
|
| Max.continuous operating voltage | 275VAC | 255VAC | |
| Nominal frequency | 50/60Hz | ||
| Nominal discharge current（8/20） In | 25 kA per pole | 50 kA per pole | |
| Max.discharge current（8/20） Imax | 50 kA per pole | ||
| Lightning impulse current（10/350） limp | 8 kA per pole | 12.5 kA per pole | 50 kA per pole |
| Voltage protection level @In | <1.5kV | ||
| Response time | <100 ns | ||
| FN-PE follow current interrupting rating | - | 100A | |
| Max.Permissible Strength of Backup Fuse | 160A gL/gG | - | |
Mechanical parameters：
|
Operating temperature range |
-40℃~+80℃ |
|
Cross-section of connection wire |
Single-strand:35mm2;multi-strand:25mm2 |
|
Torque applied by the screws |
2.0-2.5 Nm |
|
Installation |
35mm Installation DIN-rail, in accordance with:EN 50022/DIN46277-3 |
|
Enclosure material |
thermoplastic (UL94 V-0) |
|
Housing protection level |
IP20 |
|
Installation width |
4 modules ,DIN 43880 |
|
Thermal disconnector |
Yes |
|
Remote alarm contact |
Yes |
|
Additional data for Remote Alarm Contacts |
1.5mm²/0.5Nm, max |
|
Remote alarm contact type |
isolation C |
|
Switching capability Un/In |
AC:250V/0.5A DC:250V/0.1A;125V/0.2A;75V/0.5A |
|
Max. Size of connecting wire |
Max.1.5mm2(or# 16 AWG) |

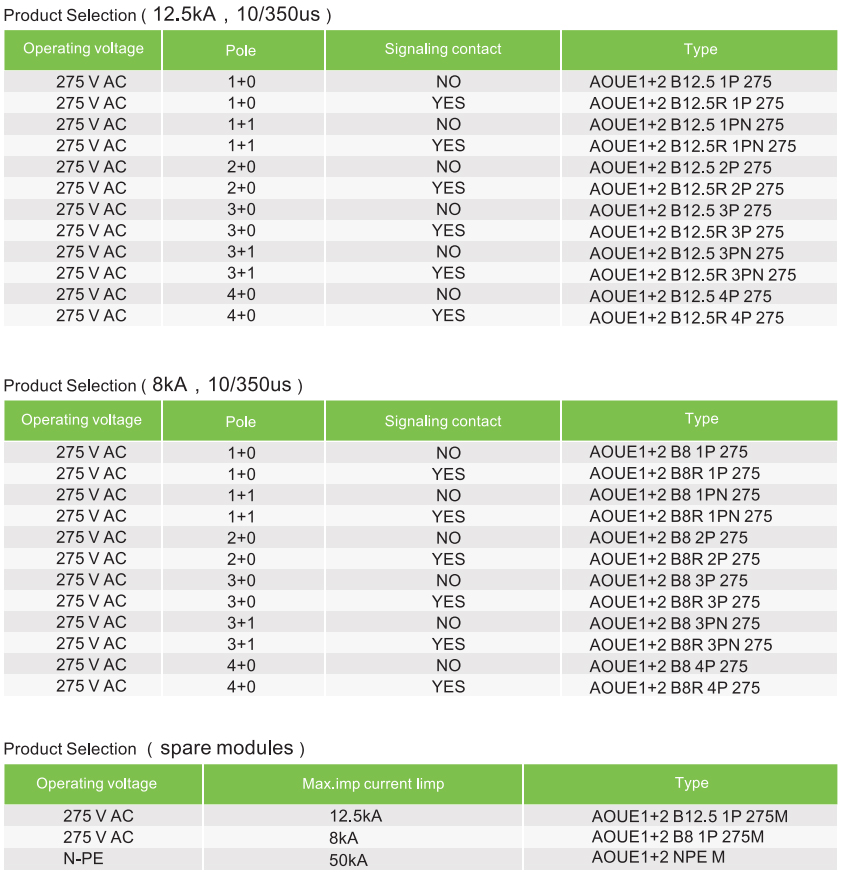

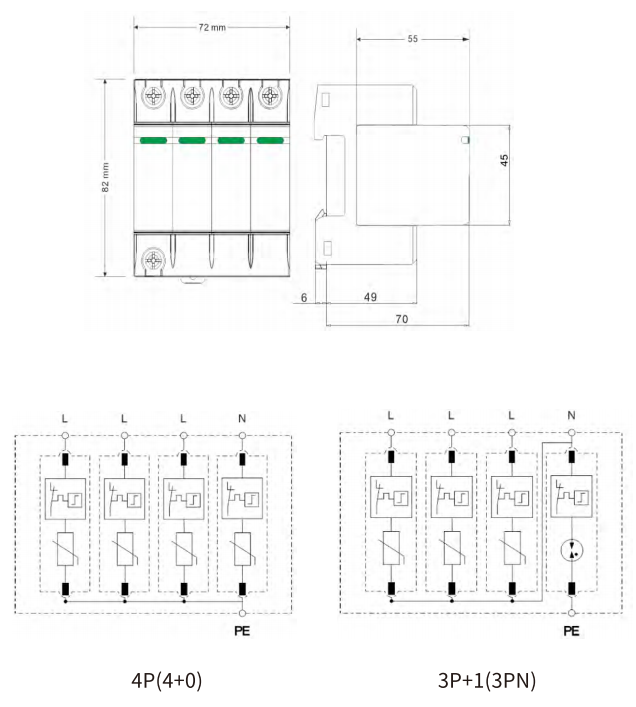

Dimensions（mm）：
